From Prototype to Mass Production: How GBTECH Supports Carbon Fiber Projects

Most R&D teams who come to us already have a working prototype. But they also know they're not confident about scaling it to volume.

The gap between "making one" and "making a batch reliably" is almost always larger than expected. Engineers can manage every variable during prototyping—volume production can't run that way. Is the process window wide enough? Will the tooling last? Will the curing curve stay consistent batch to batch? These issues don't always show up in samples, but they hit hard in pilot production.

GBTECH has been manufacturing carbon fiber tubes and sheets for over 20 years. We've seen these problems and built solutions for each. This article walks through the critical stages from material selection to production, from a real manufacturing perspective.

Material Selection: Many Problems Start Here

Carbon fiber materials come in many types—T300, T700, T800, T1000, M-series—with different resin systems and weave patterns. Each combination delivers different strength, stiffness, temperature resistance, and cost.

The most common mistake at this stage is focusing only on strength data while ignoring process compatibility. Some materials have high strength but narrow resin working windows, leaving little tolerance in production and causing inconsistent yields.

How GBTECH approaches this: We recommend material combinations based on the client's specific operating conditions—load type, temperature range, environmental requirements, and cost targets. With over 20 years of material application data, we help clients lock in the right material path early, avoiding costly revalidation later.

Sample Development: Get Testable Parts Fast

The core goal at the sample stage is getting physical parts for installation and testing as quickly as possible to expose design issues—not chasing perfection.

Common problems include: misaligned mounting holes, assembly interference from mold parting lines, and dimensional deviations from curing shrinkage. These often don't show up on drawings—you have to make the part to find them.

GBTECH's sample support: We offer hand layup, compression molding, filament winding, and other processes. We have extensive experience with rapid tooling and concurrent engineering to shorten lead times.

Process Solidification: The Real Test of "One Piece" to "Batch"

Passing sample validation is just the start. Pilot production is where the real challenges emerge.

Common issues at this stage: insufficient mold life, narrow resin working window, unstable curing curves, and inconsistent post-processing accuracy. Many projects stall here—samples look fine, but problems multiply when producing more than 10 units.

The reason is straightforward: samples are made by engineers paying close attention. Production is run by operators following SOPs. If the SOPs don't clearly define critical control points, batch-to-batch consistency is impossible.

What GBTECH does at this stage:

lHelp adjust process parameters to find stable operating windows

lOptimize mold design for longer life and consistent demolding

lAssist clients in developing standardized operating procedures (SOPs)

lTranslate sample-stage learning into reproducible process specifications

Mass Production: Consistency Is the Only Standard

The challenge in mass production is straightforward—unit #500 must match unit #1 in dimensions, appearance, and mechanical properties.

This demands automated equipment, standardized process control, strict incoming material inspection, and in-process monitoring.

GBTECH's production capabilities:

lFully integrated manufacturing chain: multiaxial prepreg production, CNC cutting, automated layup

lMultiple molding processes: autoclave, pultrusion, filament winding, RTM

lISO 9001:2015 certified with statistical process control on every batch

lProduct range: round tubes, square tubes, sheets, custom-shaped structural components

lIndustries served: aerospace, automotive, UAV, robotics, automation equipment

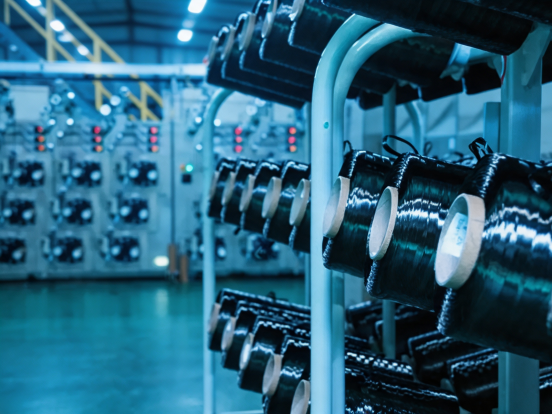

We operate our own fiber and resin pretreatment lines, controlling quality from the raw material stage. Warehouses in California and Moscow ensure stable global supply.

GBTECH's Role

We're not just a processing shop. From material consultation to production delivery, we provide engineering collaboration across the entire project lifecycle.

Industries we serve:

lRobotics (arm links, structural supports)

lUAV/drones (arms, landing gear, fuselage frames)

lAutomation equipment (panels, base plates)

lAerospace and automotive lightweight structures

Clients bring design drawings or project requirements, and we participate from material selection through sampling, pilot production, and volume production. We've been making carbon fiber tubes and sheets for over 20 years—we've encountered all kinds of problems and built the engineering methods to produce reliable parts consistently.

If you're developing carbon fiber structural components, bring your requirements and let's talk.
